H76對夾雙瓣旋啟蝶式止回閥用于純凈管路及工業、環保、水處理、高層建筑給排水管路，阻止介質逆向流動之用。該止回閥采用對夾式，蝶板為兩個半圓，且采用彈簧強制復位，密封面可為本體堆焊耐磨材料或襯橡膠，使用范圍廣，密封可靠。
特點
1、體積小，重量輕，結構緊湊、維修方便
2、閥板采用對偶式，在彈簧的彈性力下矩下可自行速閉
3、因速閉作用，可防止介質倒流
4、閥體結構長度尺寸小，剛性好
5、安全方便，可用于水平垂直兩個方向安裝
執行標準
1、法蘭連接尺寸：GB/T1724.1-98
2、結構長度：GB/T12221-1989，ISO5752-82

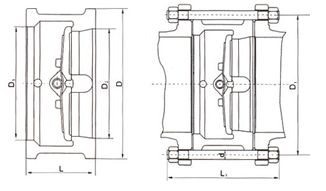

結構示意圖
材料及主要參數
| 配管法蘭 | 公稱壓力 | 常規產品型號 | ||||||
|---|---|---|---|---|---|---|---|---|
| JB/T74～90 GB/T9112～9124 HG50592～20614 | PN1.0MPa | H76H-10C | H76W-10P | H76W-10P8 | H76W-10P3 | H76W-10R | H76W-10R8 | H76W-10R3 |
| PN1.6MPa | H76H-16C | H76W-16P | H76W-16P | H76W-16P3 | H76W-16R | H76W-16R8 | H76W-16R3 | |
| PN2.5MPa | H76H-25 | H76W-25P | H76W-25P8 | H76W-25P3 | H76W-25R | H76W-25R8 | H76W-25R3 | |
| PN4.0MPa | H76H-40 | H76W-40P | H76W-40P8 | H76W-40P3 | H76W-40R | H76W-40R8 | H76W-40R3 | |
| PN6.3MPa | H76H-63 | H76W-63P | H76W-63P8 | H76W-63P3 | H76W-63R | H76W-63R8 | H76W-63R3 | |
| PN10.0MPa | H76H-100 | H76W-100P | H76W-100P8 | H76W-100P3 | H76W-100R | H76W-100R8 | H76W-100R3 | |
| PN13.0MPa | H76H-160 | H76W-160P | H76W-160P8 | H76W-160P3 | H76W-160R | H76W-160R8 | H76W-160R3 | |
| PN20.0MPa | H76H-200 | H76W-200P | H76W-200P8 | H76W-200P3 | H76W-200R | H76W-200R8 | H76W-200R3 | |
| PN25.0MPa | H76H-250 | H76W-250P | H76W-250P8 | H76W-250P3 | H76W-250R | H76W-250R8 | H76W-250R3 | |
| GB/T9112～9124 HG20615～20635 SH3406 | PN2.0MPa | H76H-20C | H76W-20P8 | H76W-20P3 | H76W-20R8 | H76W-20R3 | ||
| PN5.0MPa | H76H-50 | H76W-50P8 | H76W-50P3 | H76W-50R8 | H76W-50R3 | |||
| PN11.0MPa | H76H-110 | H76W-110P8 | H76W-110P3 | H76W-110R8 | H76W-110R3 | |||
| PN15.0MPa | H76H-150 | H76W-150P8 | H76W-150P3 | H76W-150R8 | H76W-150R3 | |||
| PN26.0MPa | H76H-260 | H76W-260P8 | H76W-260P3 | H76W-260R8 | H76W-260R3 | |||
| PN42.0MPa | H76H-420 | H76W-420P8 | H76W-420P3 | H76W-420R8 | H76W-420R3 | |||
| Class150 | H76H-A1C | H76W-A1P8 | H76W-A1P3 | H76W-A1R8 | H76W-A1R3 | |||
| Class300 | H76H-A3 | H76W-A3P8 | H76W-A3P3 | H76W-A3R8 | H76W-A3R3 | |||
| Class600 | H76H-A6 | H76W-A6P8 | H76W-A6P3 | H76W-A6R8 | H76W-A6R3 | |||
| Class900 | H76H-9 | H76W-9P8 | H76W-9P3 | H76W-9R8 | H76W-9R3 | |||
| Class1500 | H76H-15 | H76W-15P8 | H76W-15P3 | H76W-15R8 | H76W-15R3 | |||
| Class2500 | H76H-A25 | H76H-A25P8 | H76H-A25P3 | H76H-A25R8 | H76H-A25R3 | |||
| 主要 零件 材料 | 閥體 | WCB(A105) | ZG1Cr18Ni9Ti | CFB(304) | CF3(304L) | ZG1Cr18Ni12Mo2Ti | CF8M(316) | CF3M(316M) |
| 閥擗 | CF8 | CF8 | CF8 | CF3 | CF9M | CF8M | CF3M | |
| 目軸 | 2Cr13 | 1Cr18Ni9Ti | 0Cr18Ni9 | 00Cr19Ni10 | ZG1Cr18Ni12Mo2Ti | 0Cr17Ni12Mo2 | 00Cr17Ni14Mo2 | |
| 彈簧 | 0Cr18Ni9 | 0Cr18Ni9 | 0Cr18Ni9 | 00Cr19Ni10 | 00Cr17Ni14Mo2 | 00Cr17Ni14Mo2 | 00Cr17Ni14Mo2 | |
| 適用工況 | 適用介質 | 水、蒸汽、 油品等 | 硝酸等腐蝕性介質 | 強氧化性 介質 | 醋酸等腐蝕性介質 | 尿素等腐 蝕性介質 | ||
| 適用溫度(℃) | -29～425 | -196～540 | -196～425 | -196～540 | -196～455 | |||
| 注:本表為常規對夾式止回閥的型號編制,主要零件材料及適用工況,其他要求及其型號編制參見對夾式止回閥型號編制方法 | ||||||||
主要尺寸及重量
| 壓力級 | 公稱通徑 | R寸Cmm) | 配管法蘭(供參考) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS | DN | L | D | D3 | D2 | 重量 (Kg) | 螺栓孔 中心圓直徑D1 | 螺栓 數量 | 螺栓直徑d | 螺栓長度L1 | |||
| in | mm | RI | RJ | ||||||||||
| Cllass150 PN2.0MPa | 2 | 50 | 60 | 103 | 56 | 51 | 2 | 120.5 | 4 | 5/8 | M16 | 140 | 155 |
| 21/2 | 65 | 67 | 122 | 73 | 65 | 3 | 139.5 | 4 | 5/8 | M16 | 150 | 165 | |
| 3 | 80 | 73 | 135 | 88 | 80 | 4 | 152.5 | 4 | 5/8 | M16 | 160 | 175 | |
| 4 | 100 | 73 | 173 | 108 | 102 | 6 | 190.5 | 8 | 5/8 | M16 | 170 | 185 | |
| 5 | 125 | 86 | 195 | 132 | 127 | 8 | 216.0 | 8 | 3/4 | M20 | 190 | 205 | |
| 6 | 150 | 98 | 220 | 160 | 152 | 13 | 241.5 | 8 | 3/4 | M20 | 205 | 220 | |
| 8 | 200 | 127 | 277 | 210 | 203 | 25 | 298.5 | 8 | 3/4 | M20 | 240 | 255 | |
| 10 | 250 | 146 | 337 | 266 | 254 | 39 | 362.0 | 12 | 7/8 | M24 | 270 | 285 | |
| 12 | 300 | 181 | 407 | 310 | 305 | 54 | 432.0 | 12 | 7/8 | M24 | 310 | 325 | |
| 14 | 350 | 184 | 448 | 355 | 350 | 80 | 476.0 | 12 | 1 | M27 | 325 | 340 | |
| 16 | 400 | 191 | 512 | 405 | 400 | 117 | 540.0 | 16 | 1 | M27 | 340 | 355 | |
| 18 | 450 | 203 | 547 | 455 | 450 | 138 | 578.0 | 16 | 11/8 | M30 | 365 | 380 | |
| 20 | 500 | 319 | 604 | 505 | 500 | 163 | 635.0 | 20 | 11/8 | M30 | 385 | 400 | |
| 24 | 600 | 222 | 715 | 605 | 600 | 331 | 749.5 | 20 | 3/4 | M33 | 405 | 420 | |
| 28 | 700 | 305 | 773 | 700 | 700 | 380 | 795.5 | 40 | 3/4 | M20 | 455 | - | |
| 30 | 750 | 305 | 824 | 750 | 746 | 425 | 846.0 | 44 | 3/4 | M20 | 455 | - | |
| 32 | 800 | 305 | 878 | 800 | 796 | 560 | 900.0 | 48 | 7/8 | M20 | 460 | - | |
| 36 | 900 | 368 | 983 | 910 | 898 | 640 | 1009.5 | 44 | 1 | M24 | 540 | - | |
| 42 | 1050 | 432 | 1142 | 1055 | 1050 | 960 | 1171.5 | 48 | 11/8 | M27 | 625 | - | |
| 48 | 1200 | 524 | 1302 | 1205 | 1200 | 1400 | 1335.0 | 44 | 5/8 | M30 | 740 | - | |
| Class300 PN5.0MPa | 2 | 50 | 60 | 110 | 58 | 51 | 3 | 127.0 | 8 | 3/4 | M16 | 155 | 175 |
| 21/2 | 65 | 67 | 128 | 73 | 65 | 4 | 149.0 | 8 | 3/4 | M20 | 175 | 195 | |
| 3 | 80 | 73 | 147 | 88 | 80 | 6 | 168.5 | 8 | 3/4 | M20 | 190 | 210 | |
| 4 | 100 | 73 | 179 | 108 | 102 | 8 | 200.0 | 8 | 3/4 | M20 | 195 | 215 | |
| 5 | 125 | 86 | 214 | 132 | 127 | 15 | 235.0 | 8 | 3/4 | M20 | 215 | 235 | |
| 6 | 150 | 98 | 249 | 160 | 152 | 18 | 270.0 | 12 | 3/4 | M20 | 230 | 250 | |
| 8 | 200 | 127 | 305 | 210 | 203 | 31 | 330.0 | 12 | 7/8 | M24 | 280 | 300 | |
| 10 | 250 | 146 | 359 | 266 | 254 | 51 | 387.5 | 16 | 1 | M27 | 315 | 335 | |
| 12 | 300 | 181 | 420 | 310 | 305 | 77 | 451.0 | 16 | 11/8 | M30 | 365 | 385 | |
| 14 | 350 | 222 | 483 | 355 | 350 | 117 | 514.5 | 20 | 11/8 | M30 | 410 | 430 | |
| 16 | 400 | 232 | 537 | 405 | 400 | 190 | 571.5 | 20 | 11/4 | M33 | 435 | 455 | |
| 18 | 450 | 264 | 594 | 455 | 450 | 200 | 628.5 | 24 | 11/4 | M33 | 475 | 495 | |
| 20 | 500 | 292 | 652 | 505 | 500 | 265 | 686.0 | 24 | 11/4 | M33 | 510 | 535 | |
| 24 | 600 | 318 | 772 | 608 | 600 | 410 | 813.0 | 24 | 11/2 | M39 | 560 | 585 | |
| 30 | 750 | 368 | 882 | 740 | 735 | 660 | 921.0 | 36 | 13/8 | M36 | 650 | - | |
| 36 | 900 | 483 | 1044 | 880 | 873 | 1020 | 1089.0 | 32 | 15/8 | M42 | 800 | - | |
| 42 | 1050 | 568 | 1196 | 1045 | 1035 | 1540 | 1244.5 | 36 | 13/4 | M45 | 920 | - | |
| 48 | 1200 | 629 | 1365 | 1190 | 1179 | 2260 | 1416.0 | 40 | 17/8 | M48 | 1010 | - | |
主要尺寸及重量
| 壓力級 | 公稱通徑 | R寸Cmm) | 配管法蘭(供參考) | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS | DN | L | D | D3 | D2 | 重量 (Kg) | 螺栓孔中心 圓直徑D1 | 螺栓 數量 | 螺栓 直徑d | 螺栓 長度L1 | |||
| in | mm | RI | RJ | ||||||||||
| Cllass600 PN11.0MPa | 2 | 50 | 60 | 110 | 58 | 51 | 4 | 127.0 | 8 | 5/8 | M16 | 175 | 180 |
| 21/2 | 65 | 67 | 128 | 73 | 65 | 5 | 149.0 | 8 | 3/4 | M20 | 195 | 200 | |
| 3 | 80 | 73 | 147 | 88 | 80 | 8 | 168.5 | 8 | 3/4 | M20 | 210 | 215 | |
| 4 | 100 | 79 | 191 | 108 | 102 | 11 | 216.0 | 8 | 7/8 | M24 | 235 | 240 | |
| 5 | 125 | 105 | 239 | 136 | 127 | 20 | 267.0 | 8 | 1 | M27 | 280 | 285 | |
| 6 | 150 | 136 | 264 | 162 | 152 | 26 | 292.0 | 12 | 1 | M27 | 320 | 325 | |
| 8 | 200 | 165 | 318 | 121 | 200 | 55 | 349.0 | 12 | 11/8 | M30 | 370 | 375 | |
| 10 | 250 | 213 | 398 | 266 | 250 | 95 | 432.0 | 16 | 11/4 | M33 | 440 | 445 | |
| 12 | 300 | 229 | 455 | 312 | 305 | 140 | 489.0 | 20 | 11/4 | M33 | 460 | 465 | |
| 14 | 350 | 273 | 40 | 355 | 337 | 223 | 527.0 | 20 | 13/8 | M36 | 520 | 525 | |
| 16 | 400 | 305 | 562 | 400 | 387 | 360 | 603.0 | 20 | 11/2 | M39 | 575 | 580 | |
| 18 | 450 | 362 | 610 | 450 | 438 | 395 | 654.0 | 20 | 15/8 | M42 | 650 | 655 | |
| 20 | 500 | 368 | 680 | 500 | 489 | 518 | 724.0 | 24 | 15/8 | M42 | 670 | 680 | |
| 24 | 600 | 438 | 786 | 600 | 591 | 836 | 838.0 | 24 | 17/8 | M48 | 780 | 790 | |
| Cllass900 PN15.0MPa | 2 | 50 | 70 | 140 | 58 | 51 | 8 | 165.0 | 8 | 7/8 | M24 | 225 | 230 |
| 21/2 | 65 | 83 | 162 | 73 | 65 | 11 | 190.5 | 8 | 1 | M27 | 250 | 255 | |
| 3 | 80 | 83 | 165 | 90 | 80 | 14 | 190.5 | 8 | 7/8 | M24 | 240 | 245 | |
| 4 | 100 | 102 | 204 | 108 | 102 | 20 | 235.0 | 8 | 11/8 | M30 | 285 | 290 | |
| 5 | 125 | 110 | 245 | 136 | 127 | 30 | 279.5 | 8 | 11/4 | M33 | 310 | 315 | |
| 6 | 150 | 159 | 280 | 162 | 150 | 42 | 317.5 | 12 | 11/8 | M30 | 365 | 370 | |
| 8 | 200 | 206 | 350 | 212 | 200 | 84 | 393.5 | 12 | 13/8 | M36 | 440 | 445 | |
| 10 | 250 | 241 | 432 | 266 | 250 | 145 | 470.0 | 16 | 13/8 | M36 | 490 | 495 | |
| 12 | 300 | 292 | 495 | 312 | 305 | 220 | 533.5 | 20 | 13/8 | M36 | 560 | 565 | |
| 14 | 350 | 356 | 518 | 355 | 337 | 350 | 559.0 | 20 | 11/2 | M39 | 645 | 655 | |
| 16 | 400 | 384 | 572 | 400 | 387 | 470 | 616.0 | 20 | 15/8 | M42 | 685 | 695 | |
| 18 | 450 | 451 | 635 | 450 | 438 | 605 | 686.0 | 20 | 17/8 | M48 | 790 | 805 | |
| 20 | 500 | 451 | 695 | 496 | 487 | 820 | 749.5 | 20 | 2 | M52 | 810 | 825 | |
| 24 | 600 | 495 | 835 | 600 | 591 | 1050 | 901.5 | 20 | 21/2 | M64 | 945 | 965 | |
| 2 | 50 | 70 | 140 | 58 | 51 | 8 | 165.0 | 8 | 7/8 | M24 | 225 | 230 | |
| Cllass1500 PN26.0MPa | 21/2 | 65 | 83 | 162 | 73 | 65 | 11 | 190.5 | 8 | 1 | M27 | 250 | 255 |
| 3 | 80 | 83 | 172 | 90 | 80 | 19 | 203.0 | 8 | 11/8 | M30 | 270 | 275 | |
| 4 | 100 | 102 | 207 | 108 | 102 | 26 | 241.5 | 8 | 11/4 | M33 | 310 | 315 | |
| 5 | 125 | 110 | 252 | 136 | 127 | 51 | 292.0 | 8 | 11/2 | M39 | 370 | 375 | |
| 6 | 150 | 159 | 286 | 162 | 150 | 68 | 317.5 | 12 | 13/8 | M36 | 430 | 440 | |
| 8 | 200 | 206 | 356 | 212 | 200 | 130 | 393.5 | 12 | 15/8 | M42 | 510 | 520 | |
| 10 | 250 | 248 | 433 | 266 | 254 | 210 | 482.5 | 12 | 17/8 | M48 | 600 | 610 | |
| 12 | 300 | 305 | 518 | 312 | 305 | 384 | 571.5 | 16 | 2 | M52 | 695 | 715 | |
| 14 | 350 | 356 | 576 | 355 | 377 | 550 | 635.0 | 16 | 21/4 | M56 | 775 | 800 | |
| 16 | 400 | 384 | 639 | 400 | 387 | 635 | 705.0 | 16 | 21/2 | M64 | 850 | 880 | |
主要尺寸及重量
| 壓力級 | 公稱通徑 | 尺寸 | 重量 (kg) | 配管法蘭(供參考) | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NPS | DN | L | D | D3 | D2 | 螺栓孔中心 圓直徑D1 | 螺栓 數量 | 螺栓直徑d | 螺栓 長度L1 | ||||
| in | mm | ||||||||||||
| Class2500 PN42.0MPa | 2 | 50 | 70 | 143 | 143 | 42 | 10 | 171.5 | 8 | 1 | M27 | 255 | 260 |
| 21/2 | 65 | 83 | 166 | 166 | 52 | 18 | 197.0 | 8 | 11/8 | M30 | 290 | 305 | |
| 3 | 80 | 86 | 194 | 194 | 62 | 26 | 228.5 | 8 | 11/4 | M33 | 320 | 330 | |
| 4 | 100 | 105 | 232 | 232 | 88 | 40 | 273.0 | 8 | 11/2 | M39 | 370 | 380 | |
| 5 | 125 | 110 | 277 | 277 | 100 | 59 | 324.0 | 8 | 13/4 | M45 | 420 | 435 | |
| 6 | 150 | 159 | 315 | 315 | 150 | 90 | 368.5 | 8 | 2 | M52 | 515 | 530 | |
| 8 | 200 | 206 | 385 | 385 | 180 | 150 | 438.0 | 12 | 2 | M52 | 600 | 620 | |
| 10 | 250 | 254 | 474 | 474 | 225 | 240 | 539.5 | 12 | 21/2 | M64 | 750 | 775 | |
| 12 | 300 | 305 | 547 | 547 | 266 | 440 | 619.0 | 12 | 23/4 | M70 | 855 | 885 | |
主要尺寸及重量
| 公稱壓力 PNMPa | 公稱通徑 DNmm | 尺寸 | 重量 (Kg) | 配管法蘭(供參考) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| L | D | D3 | D2 | 螺栓孔中心 圓直徑D1 | 螺栓 數量 | 螺栓直徑 d | 螺栓 長度 Ll | |||
| PN1.0MPa | 50 | 60 | 108 | 56 | 51 | 2 | 125 | 4 | M16 | 150 |
| 65 | 67 | 128 | 73 | 65 | 3 | 145 | 4 | M16 | 155 | |
| 80 | 73 | 142 | 88 | 80 | 4 | 160 | 8 | M16 | 160 | |
| 100 | 73 | 162 | 108 | 102 | 6 | 180 | 8 | M16 | 165 | |
| 125 | 86 | 192 | 132 | 127 | 8 | 210 | 8 | M16 | 180 | |
| 150 | 98 | 218 | 160 | 152 | 13 | 240 | 8 | M20 | 205 | |
| 200 | 127 | 273 | 210 | 203 | 24 | 295 | 8 | M20 | 235 | |
| 250 | 146 | 328 | 266 | 254 | 37 | 350 | 12 | M20 | 255 | |
| 300 | 181 | 378 | 310 | 305 | 50 | 400 | 12 | M20 | 290 | |
| 350 | 184 | 438 | 355 | 350 | 76 | 460 | 16 | M20 | 295 | |
| 400 | 191 | 489 | 405 | 400 | 110 | 515 | 16 | M24 | 310 | |
| 450 | 203 | 539 | 455 | 450 | 135 | 565 | 20 | M24 | 325 | |
| 500 | 219 | 594 | 505 | 500 | 158 | 620 | 20 | M24 | 345 | |
| 600 | 222 | 696 | 605 | 600 | 320 | 725 | 20 | M27 | 355 | |
| 700 | 305 | 811 | 700 | 675 | 380 | 840 | 24 | M27 | 440 | |
| 800 | 305 | 918 | 800 | 796 | 560 | 950 | 24 | M30 | 450 | |
| 900 | 368 | 1018 | 903 | 898 | 640 | 1050 | 28 | M30 | 520 | |
| 1000 | 432 | 1124 | 1055 | 1050 | 900 | 1160 | 28 | M33 | 590 | |
| 1200 | 524 | 1340 | 1205 | 1200 | 1400 | 1380 | 32 | M36 | 695 | |
| PN1.6MPa | 50 | 600 | 108 | 56 | 51 | 2 | 125 | 4 | M16 | 150 |
| 65 | 67 | 128 | 73 | 65 | 3 | 145 | 4 | M16 | 155 | |
| 80 | 73 | 142 | 88 | 80 | 4 | 160 | 8 | M16 | 160 | |
主要尺寸及重量
| 公稱壓力 PN MPa | 公稱 通徑 | 尺寸 | 重量 (Kg) | 配管法蘭(供參考) | ||||||
|---|---|---|---|---|---|---|---|---|---|---|
| L | D | D3 | D2 | 累栓孔中心 圓直徑D1 | 螺栓 數量 | 螺栓 直徑 | 螺栓 長度Ll | |||
| PN1.6MPa | 100 | 73 | 162 | 108 | 102 | 6 | 180 | 8 | M16 | 165 |
| 125 | 86 | 192 | 132 | 127 | 8 | 210 | 8 | M16 | 180 | |
| 150 | 98 | 218 | 160 | 152 | 13 | 240 | 8 | M20 | 205 | |
| 200 | 127 | 273 | 210 | 203 | 24 | 295 | 12 | M20 | 235 | |
| 250 | 146 | 329 | 266 | 254 | 39 | 355 | 12 | M24 | 265 | |
| 300 | 181 | 384 | 310 | 305 | 50 | 410 | 12 | M24 | 305 | |
| 350 | 184 | 444 | 355 | 350 | 76 | 470 | 16 | M24 | 310 | |
| 400 | 191 | 496 | 405 | 400 | 110 | 525 | 16 | M27 | 330 | |
| 450 | 203 | 556 | 455 | 450 | 135 | 585 | 20 | M27 | 345 | |
| 500 | 219 | 618 | 505 | 500 | 158 | 650 | 20 | M30 | 370 | |
| 600 | 222 | 732 | 605 | 600 | 320 | 770 | 20 | M33 | 380 | |
| 700 | 305 | 802 | 700 | 695 | 380 | 840 | 24 | M33 | 470 | |
| 800 | 305 | 912 | 800 | 796 | 560 | 950 | 24 | M36 | 475 | |
| 900 | 368 | 1012 | 903 | 898 | 640 | 1050 | 28 | M36 | 545 | |
| 1000 | 432 | 1126 | 1055 | 1050 | 900 | 1170 | 28 | M39 | 620 | |
| 1200 | 524 | 1340 | 1205 | 1200 | 1400 | 1390 | 32 | M45 | 735 | |
| PN2.5MPa | 50 | 60 | 108 | 56 | 51 | 2 | 125 | 4 | M16 | 150 |
| 65 | 67 | 128 | 73 | 65 | 3 | 145 | 8 | M16 | 160 | |
| 80 | 73 | 142 | 88 | 80 | 4 | 160 | 8 | M16 | 170 | |
| 100 | 73 | 168 | 108 | 102 | 6 | 190 | 8 | M20 | 180 | |
| 125 | 86 | 194 | 132 | 127 | 8 | 220 | 8 | M24 | 205 | |
| 150 | 98 | 224 | 160 | 152 | 14 | 250 | 8 | M24 | 220 | |
| 200 | 127 | 284 | 210 | 203 | 27 | 310 | 12 | M24 | 255 | |
| 250 | 146 | 341 | 266 | 254 | 42 | 370 | 12 | M27 | 285 | |
| 300 | 181 | 401 | 310 | 305 | 54 | 430 | 16 | M27 | 325 | |
| 350 | 184 | 458 | 355 | 350 | 86 | 490 | 16 | M30 | 340 | |
| 400 | 191 | 515 | 405 | 40 | 120 | 550 | 16 | M33 | 360 | |
| 450 | 203 | 565 | 455 | 450 | 148 | 600 | 20 | M33 | 375 | |
| 500 | 219 | 622 | 505 | 500 | 165 | 660 | 20 | M33 | 395 | |
| 600 | 222 | 732 | 605 | 600 | 340 | 770 | 20 | M36 | 410 | |
| 700 | 305 | 831 | 700 | 695 | 400 | 875 | 24 | M39 | 500 | |
| 800 | 305 | 942 | 800 | 796 | 580 | 990 | 24 | M45 | 520 | |
| 900 | 368 | 1040 | 903 | 898 | 660 | 1090 | 28 | M45 | 590 | |
| 1000 | 432 | 1155 | 1055 | 1050 | 960 | 1210 | 28 | M52 | 675 | |
| 1200 | 524 | 1365 | 1205 | 1200 | 1440 | 1420 | 32 | M52 | 790 | |
主要尺寸及重量
| 公稱壓力 PN MPa | 公稱通徑 DN mm | 尺寸 | 重量 (Kg) | 配管法蘭(供參考) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | D | D3 | D2 | 螺栓孔中心 圓直徑D1 | 螺栓 數量 | 螺栓 直徑d | 螺栓 長度L1 | |||||
| RF、MFM | RJ | |||||||||||
| PN4.0MPa | 50 | 60 | 108 | 58 | 51 | 3 | 125 | 4 | M16 | 150 | - | |
| 65 | 67 | 125 | 73 | 65 | 4 | 145 | 8 | M16 | 160 | - | ||
| 80 | 73 | 142 | 88 | 80 | 6 | 160 | 8 | M16 | 170 | - | ||
| 100 | 73 | 168 | 108 | 102 | 8 | 190 | 8 | M20 | 180 | - | ||
| 125 | 86 | 194 | 132 | 127 | 13 | 220 | 8 | M24 | 205 | - | ||
| 150 | 98 | 224 | 160 | 152 | 16 | 250 | 8 | M24 | 220 | - | ||
| 200 | 127 | 291 | 210 | 203 | 28 | 320 | 12 | M27 | 270 | - | ||
| 250 | 146 | 353 | 266 | 254 | 49 | 385 | 12 | M30 | 300 | - | ||
| 300 | 181 | 418 | 310 | 305 | 76 | 450 | 16 | M30 | 3485 | - | ||
| 350 | 222 | 475 | 355 | 350 | 114 | 510 | 16 | M33 | 400 | - | ||
| 400 | 232 | 547 | 405 | 400 | 190 | 585 | 16 | M36 | 425 | - | ||
| 450 | 264 | 572 | 455 | 450 | 200 | 610 | 20 | M36 | 470 | - | ||
| 500 | 292 | 626 | 505 | 500 | 260 | 670 | 20 | M39 | 505 | - | ||
| 600 | 318 | 745 | 608 | 600 | 404 | 795 | 20 | M45 | 575 | - | ||
| PN6.3MPa | 50 | 60 | 114 | 58 | 51 | 4 | 135 | 4 | M20 | 170 | 185 | |
| 65 | 67 | 138 | ||||||||||
